Air curtain machine (air curtain)

Air curtain machine (air curtain)

format: 2; filter: 0; fileterIntensity: 0.0; filterMask: 0; captureOrientation: 0;
runfunc: 0; algolist: 0;
multi-frame: 1;
brp_mask:0;
brp_del_th:0.0000,0.0000;
brp_del_sen:0.0000,0.0000;
motionR: 0;
delta:1;
bokeh:1;
module: photo;hw-remosaic: false;touch: (0.49079397, 0.5750593);sceneMode: 13107200;cct_value: 0;AI_Scene: (-1, -1);aec_lux: 217.0;aec_lux_index: 0;albedo: ;confidence: ;motionLevel: 0;weatherinfo: weather??, icon:2, weatherInfo:100;temperature: 46;

Product Catalog

model	Rated voltage	frequency	power	Air volume	Wind speed	noise	Dimensions	weight
model	V	Hz	W	m³/h	m/s	dB	mm	kg
LFM250-1200	380	50	550	1150	19	≤70	1580350400	21
LFM250-1500	380	50	550	1425	18	≤70	1880350400	22.5
LFM250-1800	380	50	750	1710	18	≤70	2180350400	24
LFM250-2000	380	50	750	1790	17	≤70	2380350400	25
LFM250-2200	380	50	750	1800	16	≤70	2580350400	26
LFM280-2000	380	50	1100	1890	18	≤70	2250405505	33
LFM280-2200	380	50	1100	2050	18	≤70	2450405505	34
LFM280-2000	380	50	1500	2000	19	≤70	2450405505	33
LFM280-2200	380	50	1500	2100	18.5	≤70	2650405505	34
LFM280-2400	380	50	1500	2255	18	≤70	2850405505	35

Centrifugal wind curtain machine-Single motor

Adopt high-efficiency motor. Quality control, quick start, large air volume, can run for 8000 hours without trouble, long-term use.
Stainless steel or electrostatic odor, bright appearance, waterproof, high safety factor, more assured to use, non-standard products can be customized.
Stainless steel or electrostatic odor, bright appearance, waterproof, high safety factor, more assured to use, non-standard products can be customized.

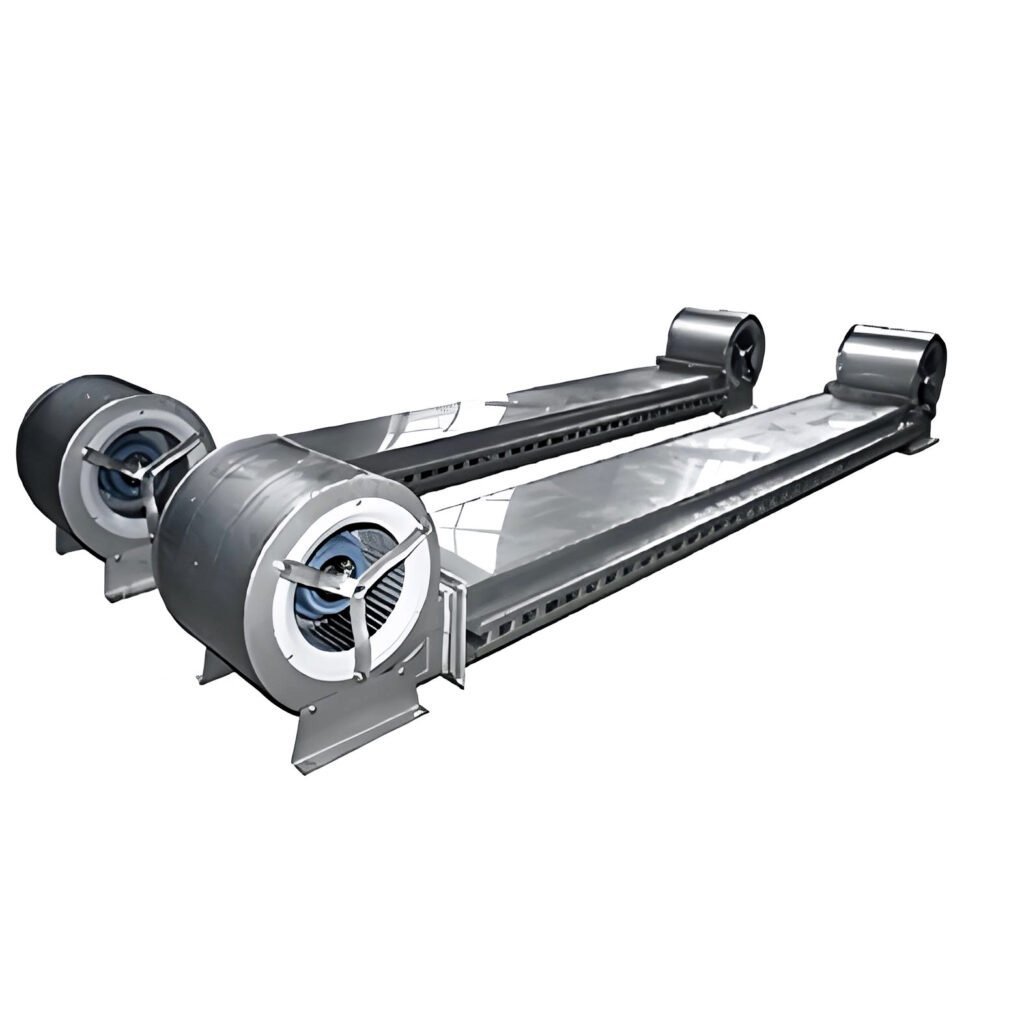

Centrifugal wind curtain machine-Dual motor

Adopt high-efficiency stainless steel motor. The air volume is fully controlled, the start-up is fast, the larger the air volume, the more trouble-free it can be, and the longer the use time.
Stainless steel or anti-static wall is bright, waterproof and anti-inducing, with high safety system, and it is more assured to use. Non-standard products are customized by the company,
Suitable for cold storage, factory, car, shopping mall and other places, it is recommended to use the best brightness in the range of 2.8m-3.5m.

model	Rated voltage	frequency	power	Air volume	Wind speed	noise	Dimensions	weight
model	V	Hz	W	m/h	m/s	dB	mm	kg
LFM250-2000s	380	50	550*2	4415	21	≤70	2760350400	40
LFM250-2200s	380	50	550*2	4550		≤70	2960350400	41
LFM250-2400s	380	50	750*2	5445	22	≤70	3160350400	42
LFM250-2600s	380	50	750*2	5625	21	≤70	3360350400	43
LFM250-2800s	380	50	750*2	5760	20	≤70	3560350400	44
LFM280-2200s	380	50	1100*2	5000	22	≤70	3100405505	55
LFM280-2400s	380	50	1100*2	5260	21	≤70	3300405505	56.5
LFM280-2600s	380	50	1500*2	6010	22	≤70	3500405505	57.5
LFM280-2800s	380	50	1500*2	6170	21	≤70	3700405505	59
LFM280-3000s	380	50	1500*2	6280	20	≤70	3900405505	60
