Combined cold storage

Structural situation	Civil construction cold storage (enclosed cold storage)
	Combined cold storage (mobile cold storage)
Usage	Production cold storage
	Distributive cold storage
	Retail cold storage
Refrigeration capacity	Large cold storage	The refrigeration capacity of this type of cold storage is more than 10000t
	Medium cold storage	The refrigeration capacity of this type of cold storage is in the range of 1000-10000r
	Small cold storage (small cold storage)	The freezing capacity of this type of cold storage is below 1000τ
Cold storage temperature	Normal temperature cold storage	The refrigeration temperature of this type of cold storage is -2℃-8℃
	High temperature cold storage	The refrigeration temperature of this type of cold storage is -2℃~-10℃
	Medium temperature cold storage	The refrigeration temperature of this type of cold storage is -10℃~-23℃
	Low temperature cold storage	The refrigeration temperature of this type of cold storage is -23℃~-30℃
	Ultra-low temperature cold storage	The refrigeration temperature of this type of cold storage is below -30℃

Calculation of cold storage tonnage

Tonnage of mobile cold storage = content volume of cold storage room × volume utilization coefficient × unit weight of food
The volume of the cold storage room of the mobile cold storage = length × width × height of the storage (cubic)
Volume utilization coefficient of cold storage	Unit weight of food in mobile cold storage
500~1000 cubic meters = 0.40	Frozen meat = 0.40 tons/cubic meter
1001~2000 cubic meters = 0.50	Frozen fish = 0.47 tons/cubic meter
2001~10000 cubic meters = 0.55	Fresh fruits and vegetables = 0.23 tons/cubic meter
10001~15000 cubic meters = 0.60	Mechanism ice = 0.75 tons/cubic meter
	Frozen lamb cavity = 0.25 tons/cubic
	Boneless meat cuts or by-products = 0.60 tonnes/cubic meter
	Boxed frozen food = 0.55 tons/cubic meter

Cold storage classification

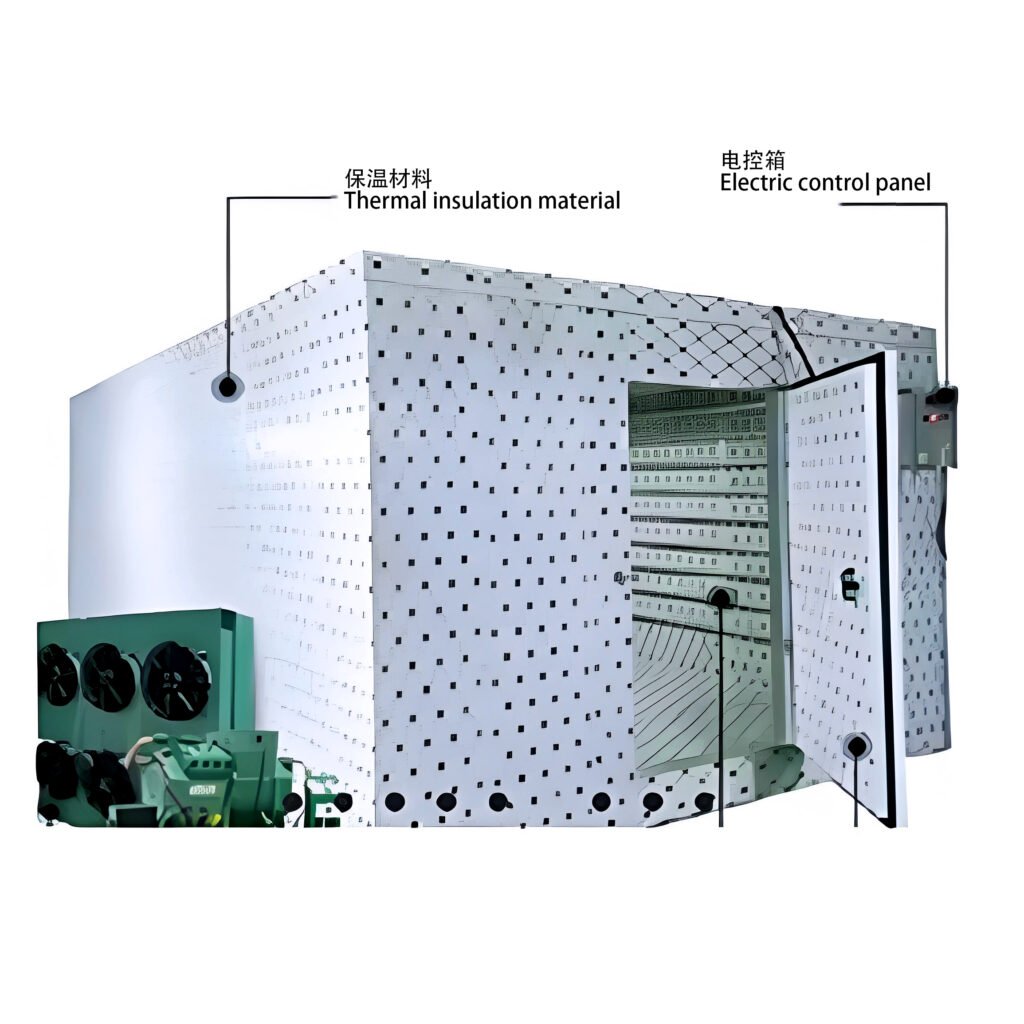

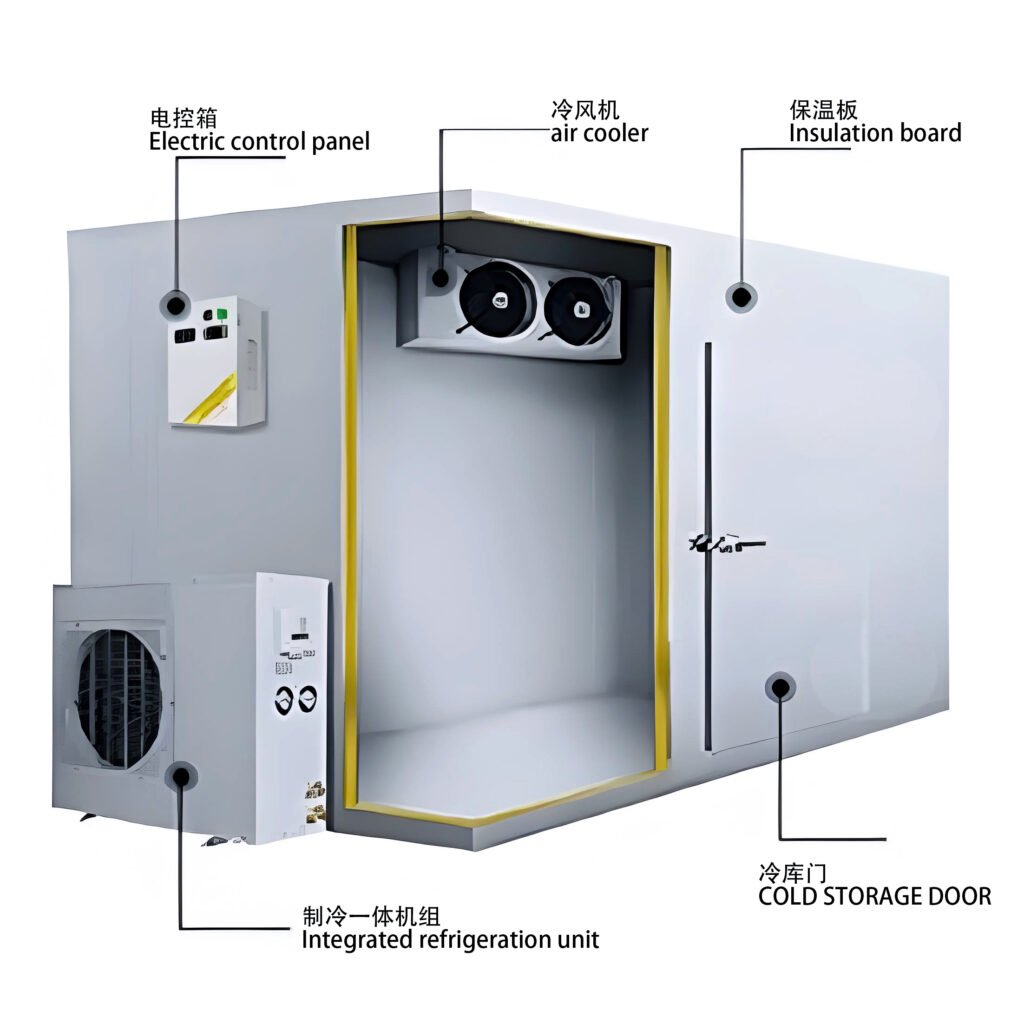

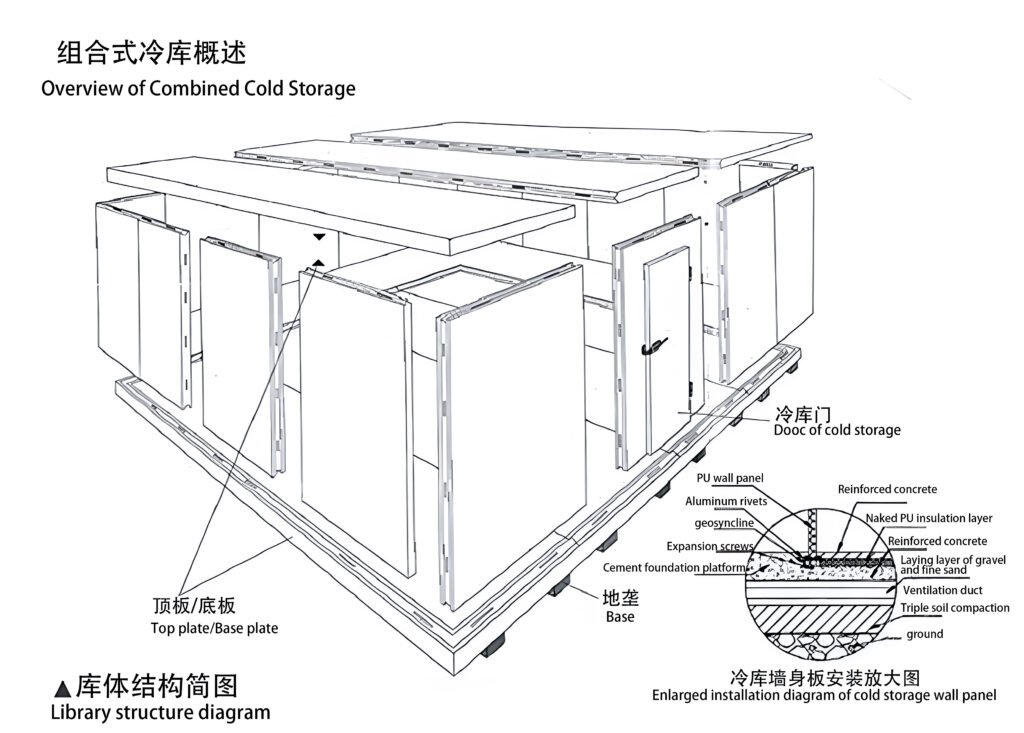

This modular cold storage can be directly installed on site, with the characteristics of short assembly and construction period and quick results after commissioning. Therefore, it is widely used in various enterprises, institutions, hotels, restaurants, bars, shops, etc. for freezing and refrigerating meat, eggs, dairy products, seafood and other foods. The high temperature performance warehouse panels (embossed aluminum warehouse panels, embossed galvanized warehouse panels, color steel warehouse panels, stainless steel warehouse panels), the insulation core material is made of injected polyurethane foam foaming, and has excellent insulation performance. The assembled cold storage, the warehouse panels are prefabricated in the factory, the structure is standardized, and they are transported to the site for direct assembly after they are made. They can also be customized according to customer requirements. They have the characteristics of quick assembly, time saving, labor saving, and quick benefits.
